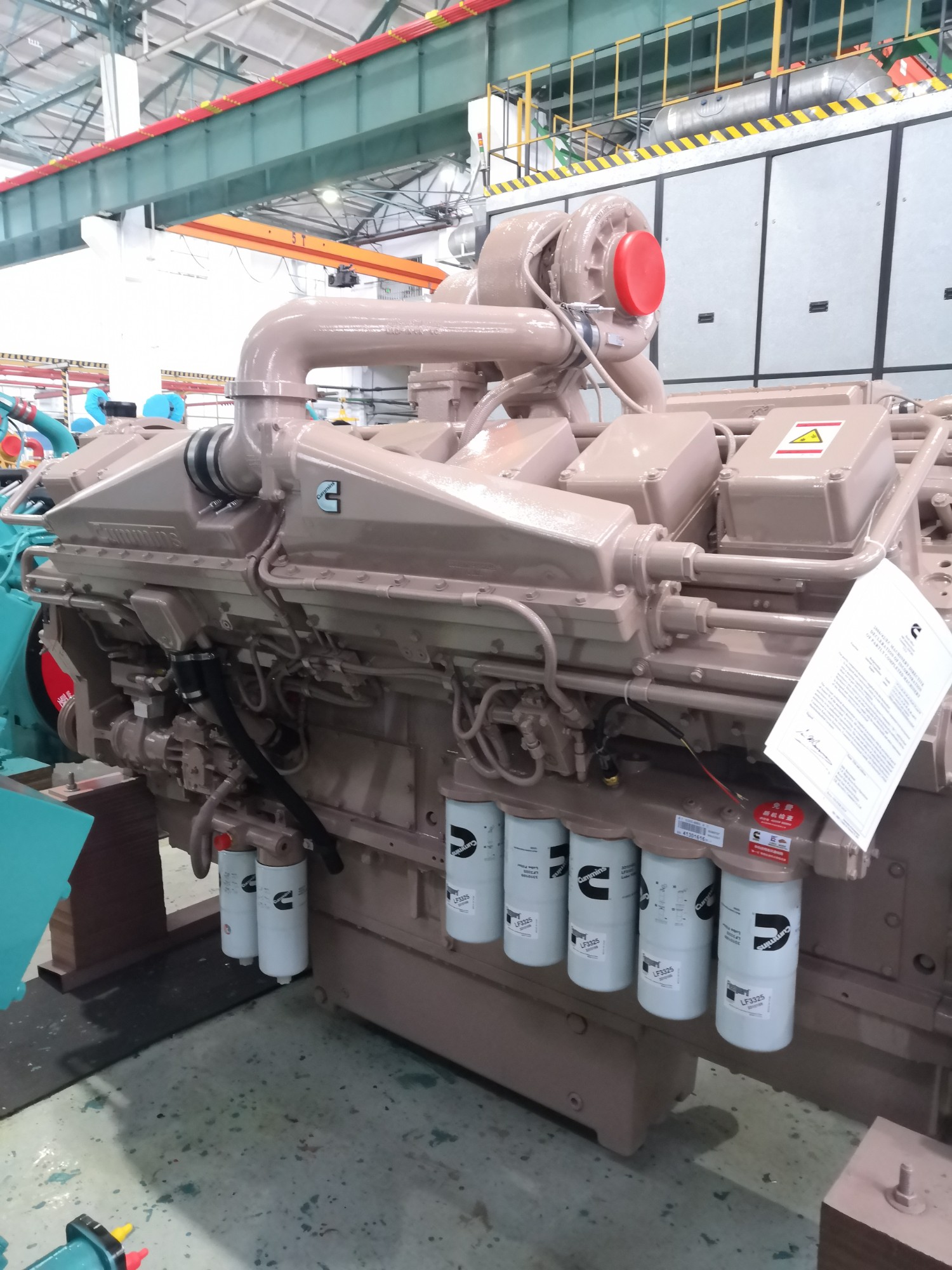

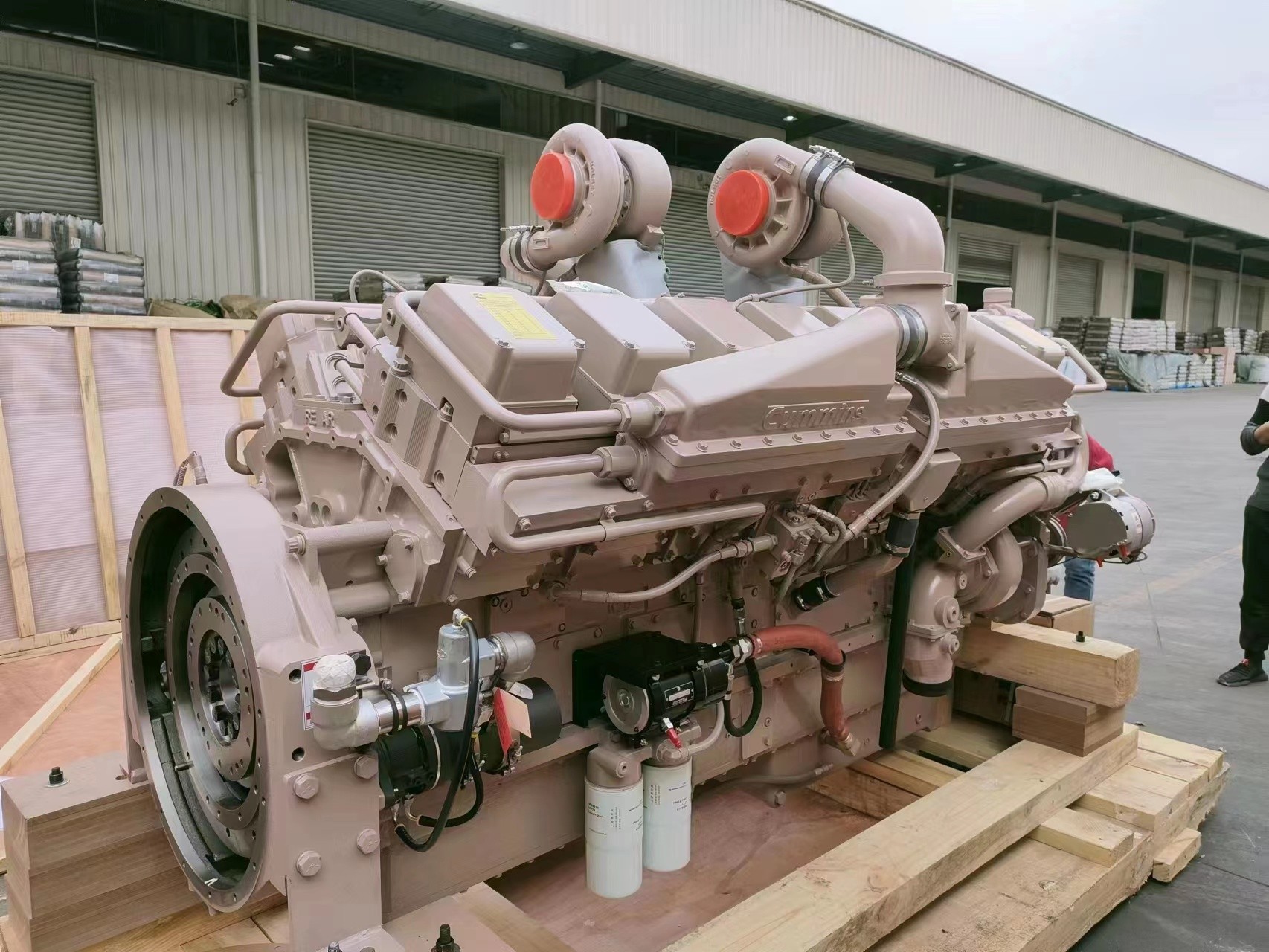

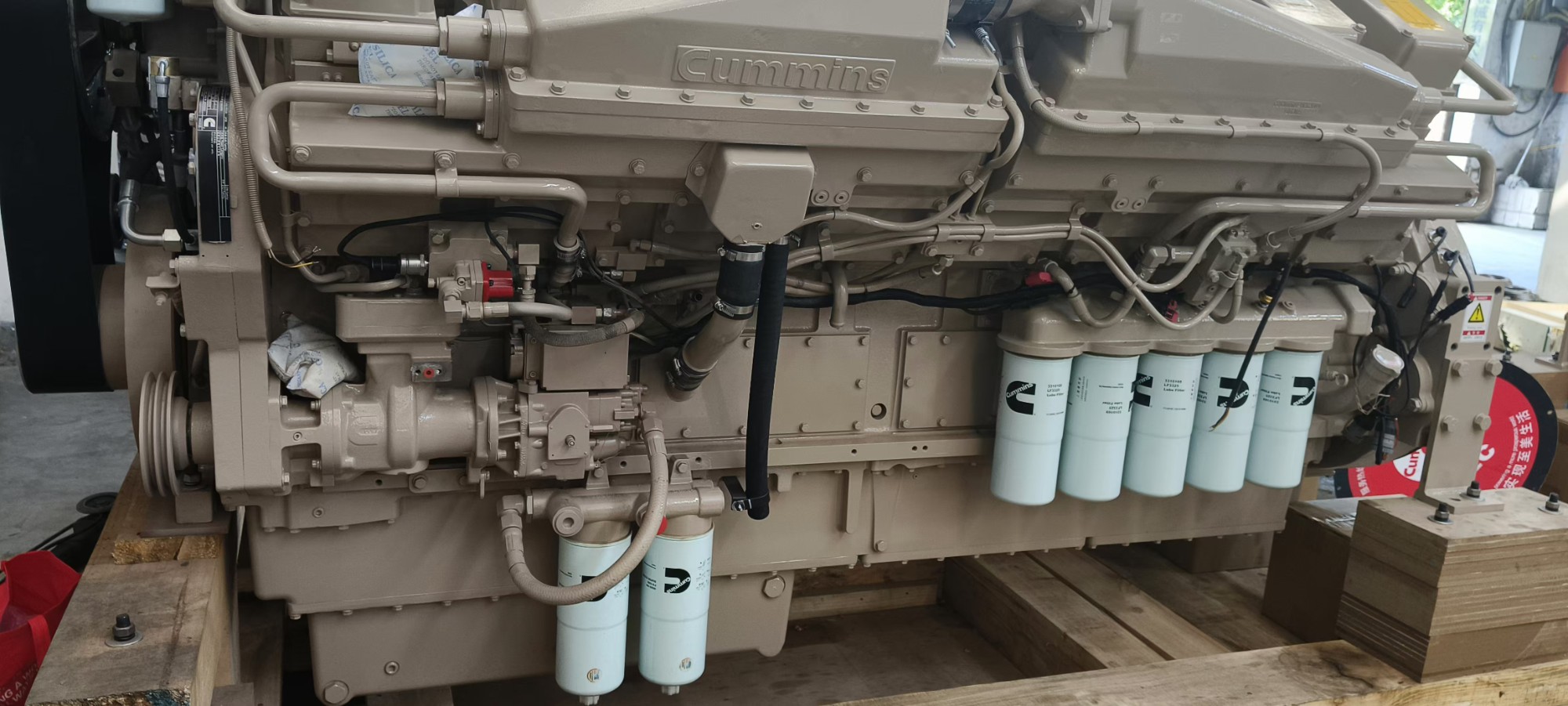

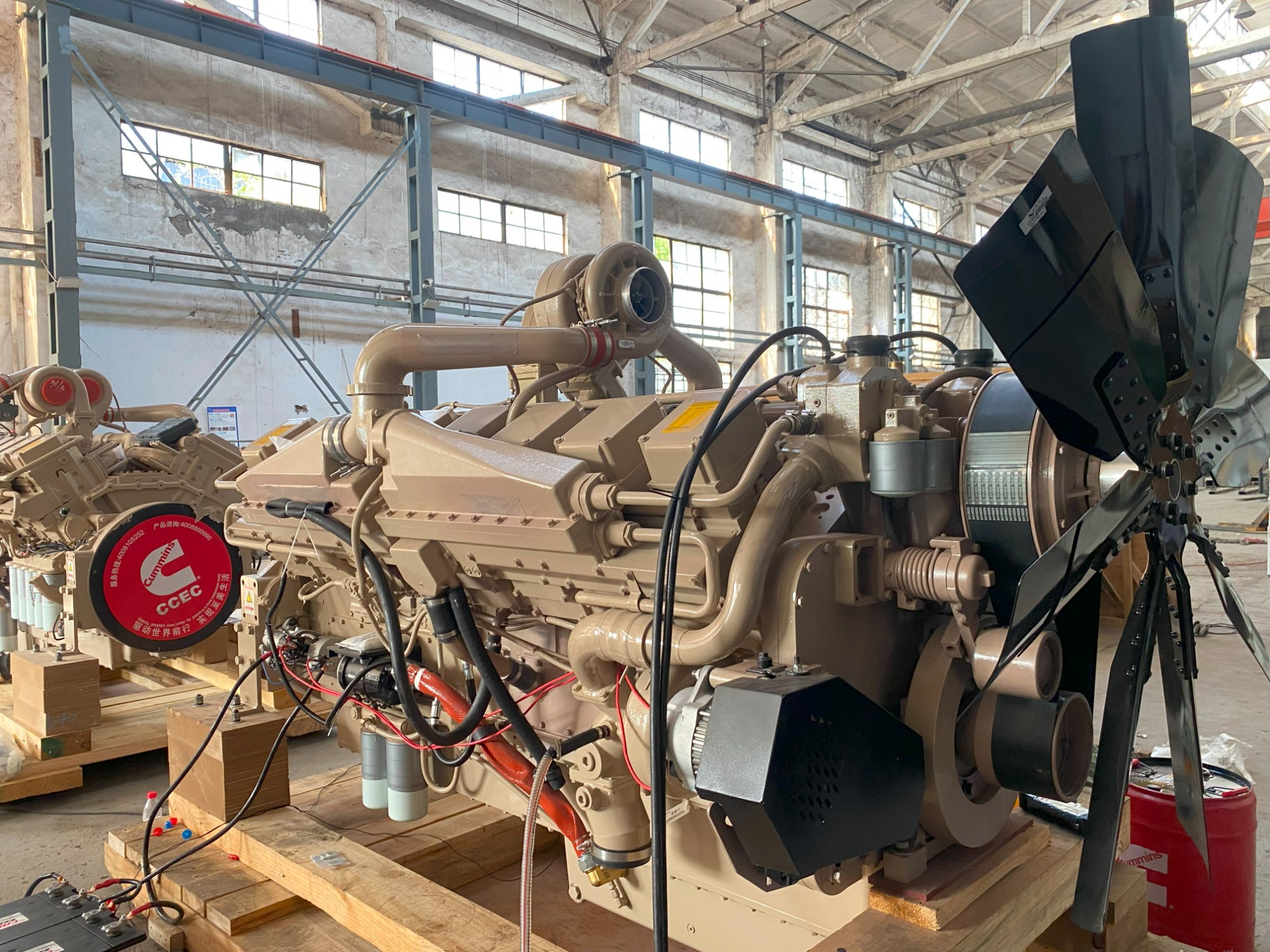

Cummins KTA50-C1600

Cummins KTA50-C1600
Rated Power: 1,600 BHP / 1194 KW @ 1900 RPM
Peak Torque: 6,242 N-m @ 1500 RPM
CPL 5539
Emission Certification: U.S. EPA Tier 1
Applications: Dump Truck, Excavator, Mud Pump, Railway

Product Details

Product Tags

ModelKTA50-C1600
Rated   Power 1194 KW / 1600 BHP @   1900 RPM
Peak Torque6,242 N-m @ 1500 RPM
CPL5539/2315
ConfigurationD283018CX02
Fuel SystemSTC
ECM VersionCM400
ApplicationDump Truck
Emission   CertificationNone
AspirationTurbocharged and   Aftercooled
Displacement50.3L
No. of   Cylinders16
Bore &   Stroke159mm X 159 mm
Dry Weight4,858 KG
Wet Weight5,153 KG
Dimension2,857 mm X 1,415mm X   1,766 mm
Fan ClutchYes
ELIMINATOR   FilterNo
Air CompressorYes
Supply   Capacity>10 Units per   Month
