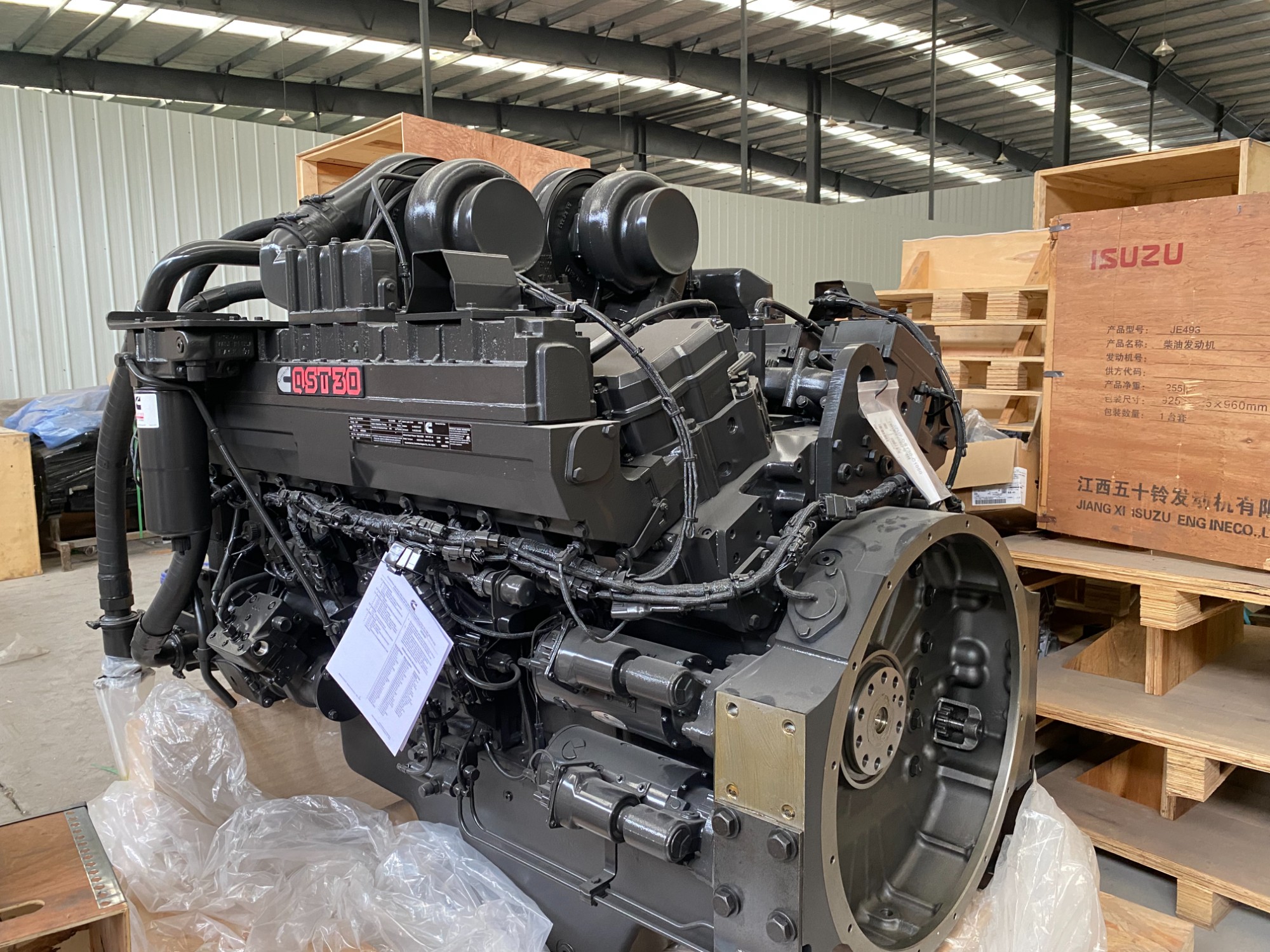

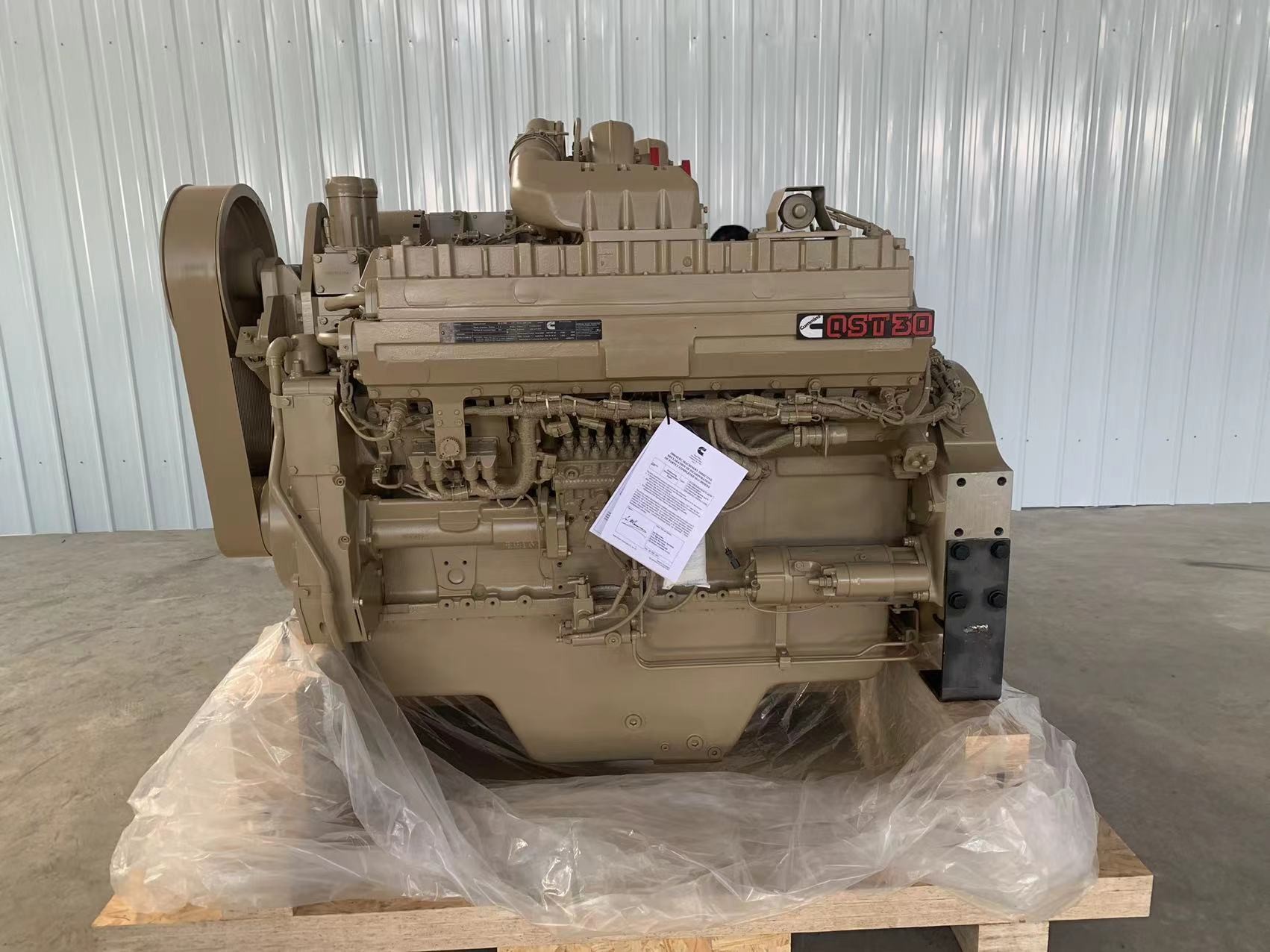

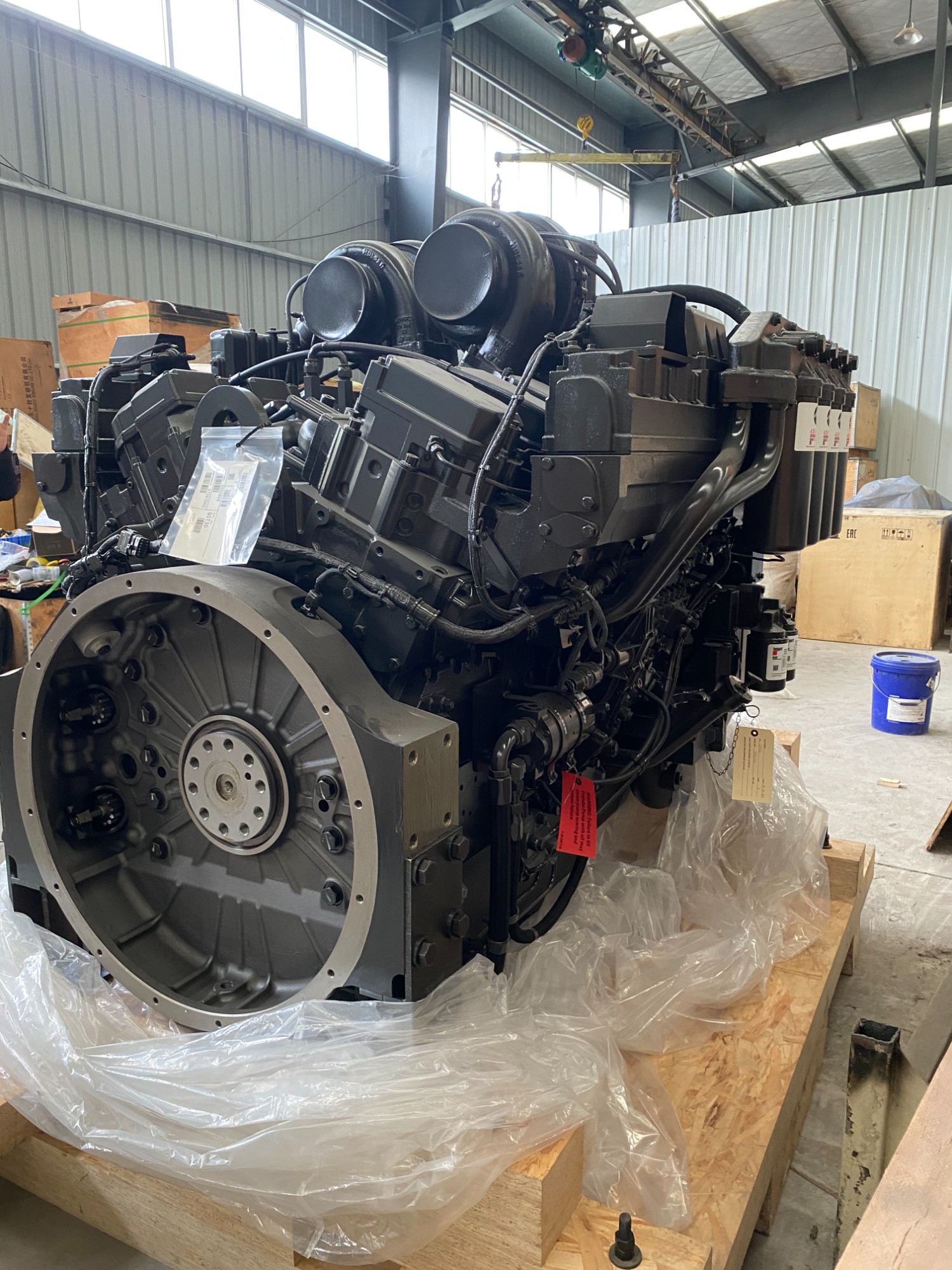

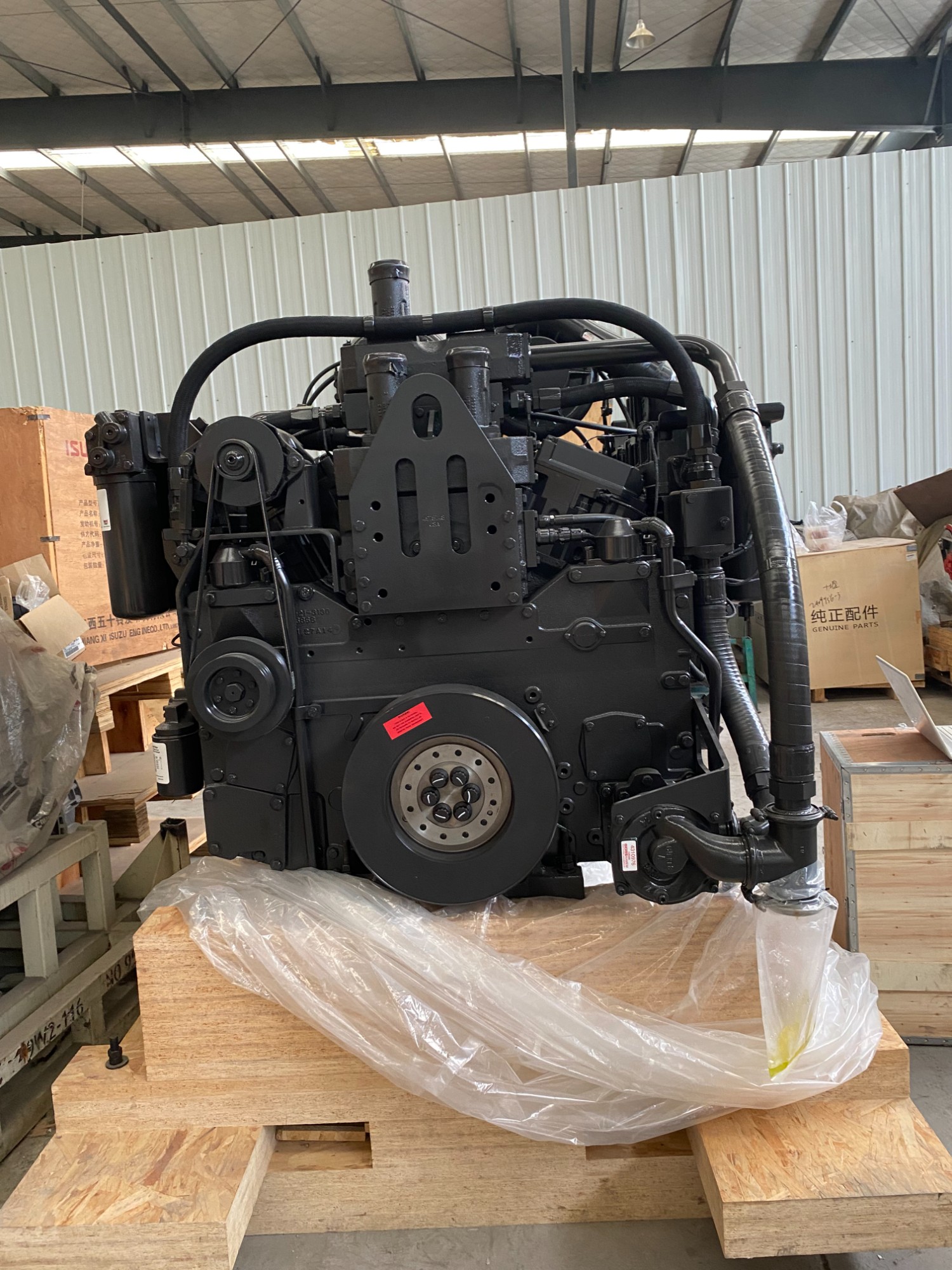

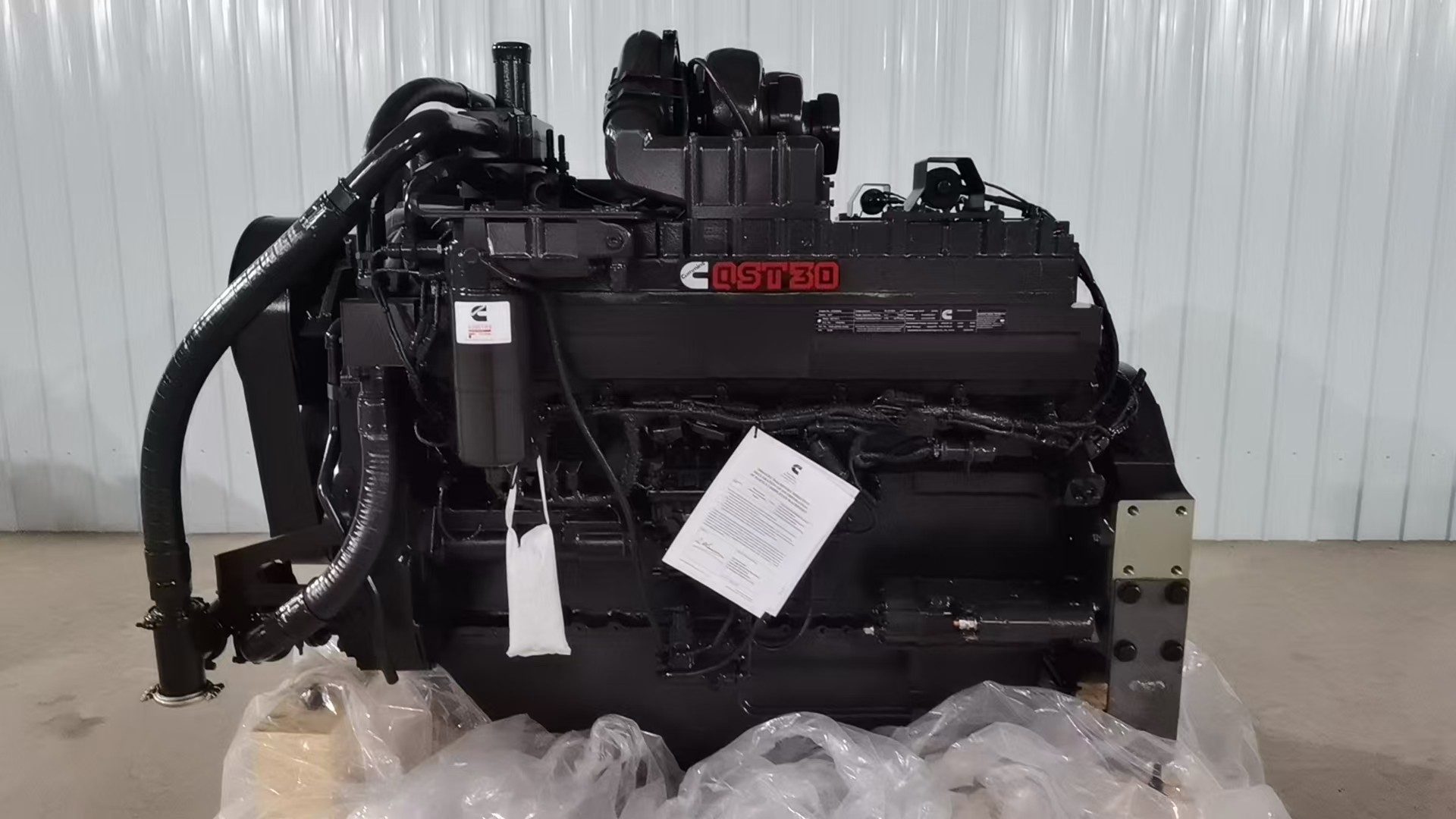

QST30-C

Model: QST30-C1050
Rated Power: 783 - 1,119 KW
Peak Torque: 4,629 N-m - 6,612 N-m
Configuration: D573002CX03
Fuel System: Bosch Electronic
ECM Version: CM552
Application: BelAZ 75581/75585

INQUIRY down load to pdf

Product Details

Product Tags

Model	QST30-C1050	QST30-C1200
Rated Power	783 KW @ 1900 RPM	895 KW @ 1800 RPM
Peak Torque	4,629 N-m @ 1300 RPM	5,082 N-m @ 1400 RPM
CPL	2127	2139
Configuration	D573002CX03	D573002CX03
Fuel System	Bosch Electronic	Bosch Electronic
ECM Version	CM552	CM552
Application	BelAZ 75581	BelAZ 75585
Emission Certification	Non-certified	Non-certified
Aspiration	Turbocharged and Aftercooled	Turbocharged and Aftercooled
Displacement	30.5 L	30.5 L
No. of Cylinders	12	12
Bore & Stroke	140 mm X 165 mm	140 mm X 165 mm
Compression Rate	15.7:1	15.7:1
Fuel Consumption	199 g/KW-hr @ 1900 RPM	210 g/KW-hr @ 1800 RPM
Cooling System Type	1 Pump 2 Loop	1 Pump 2 Loop
Dimensions	1,887 mm X 1,483 mm X 1,744 mm	1,887 mm X 1,483 mm X 1,744 mm
Wet Weight	3,328 KG	3,328 KG
Dry Weight	2,998 KG	2,998 KG
