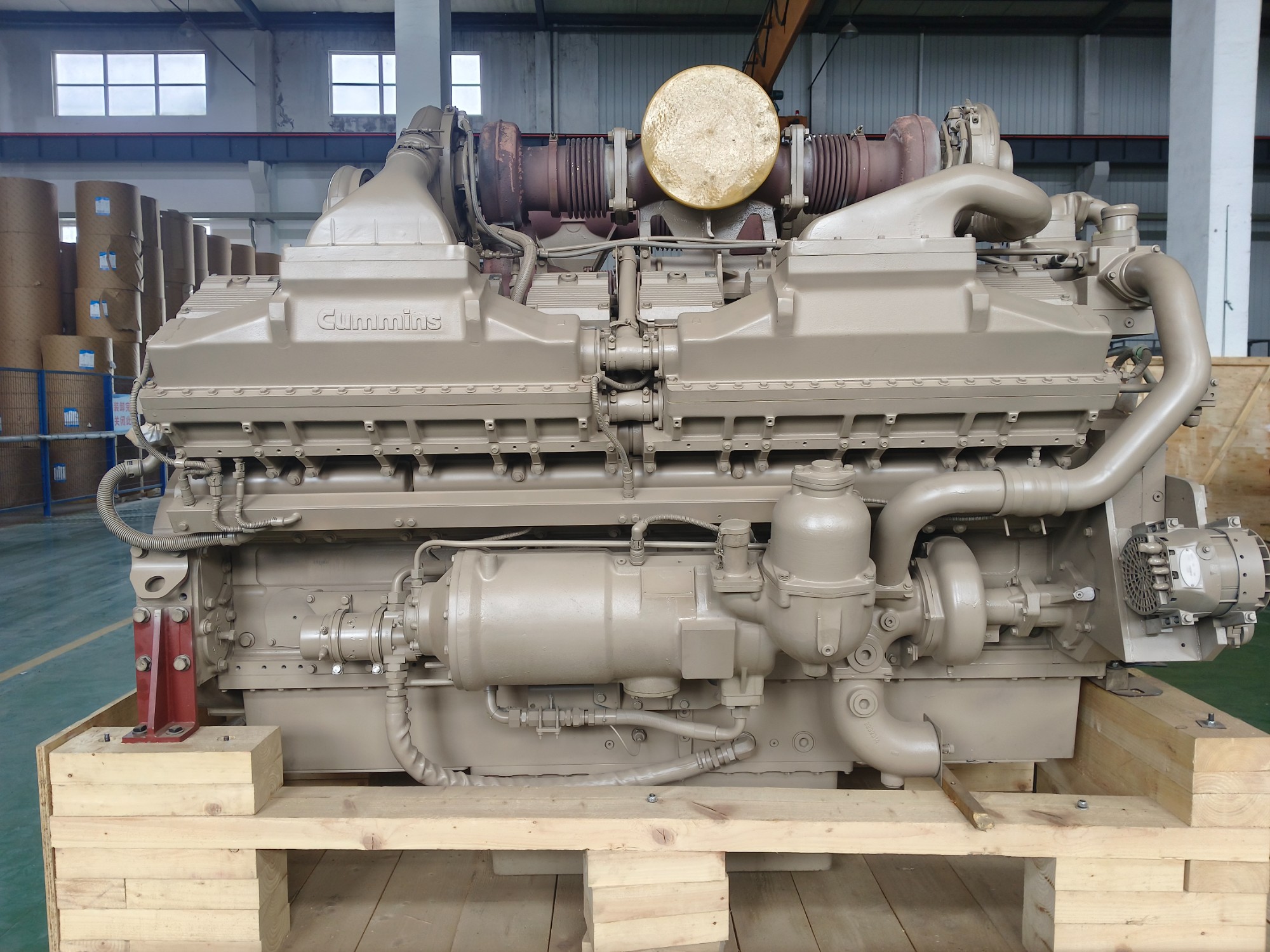

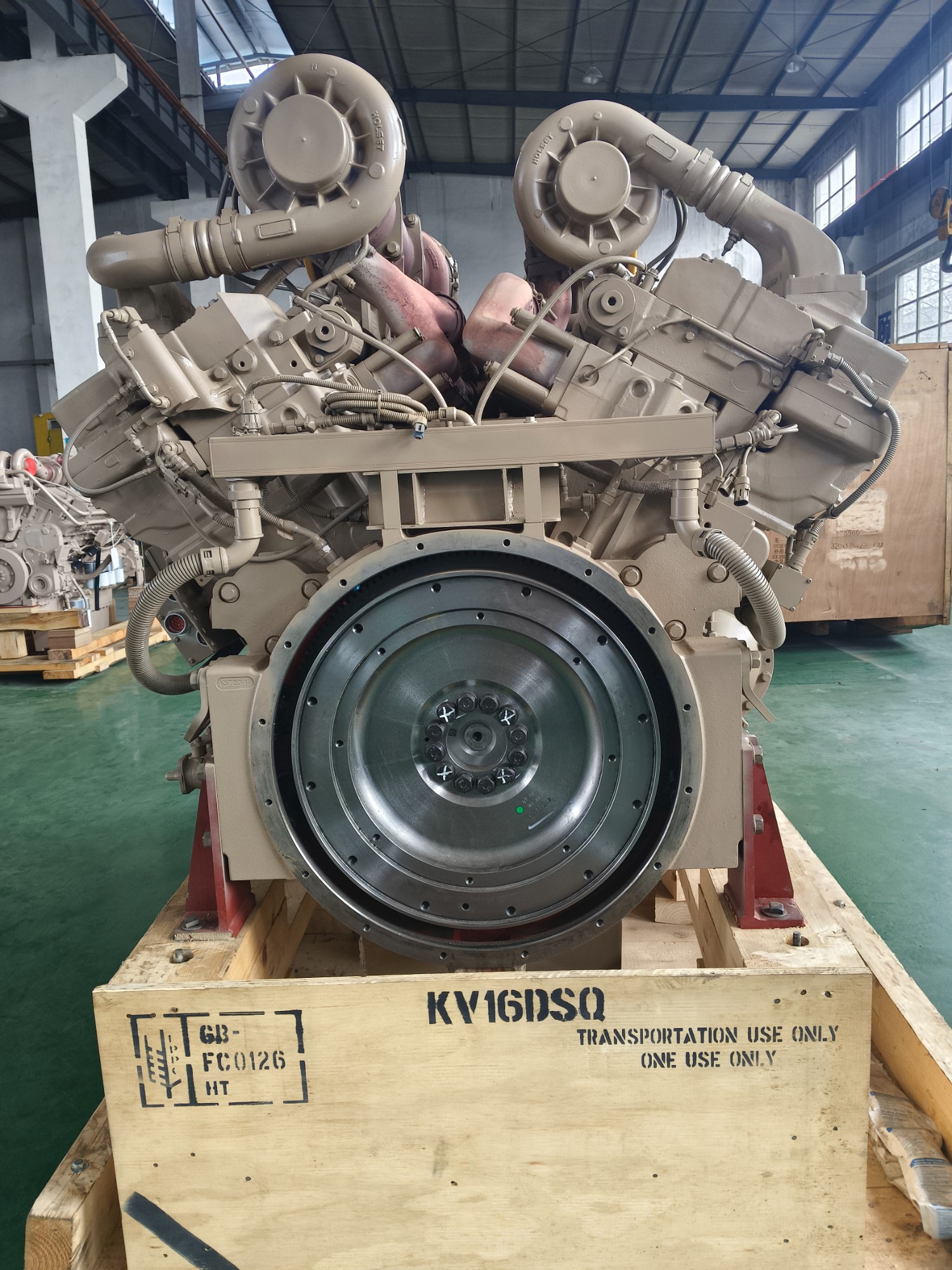

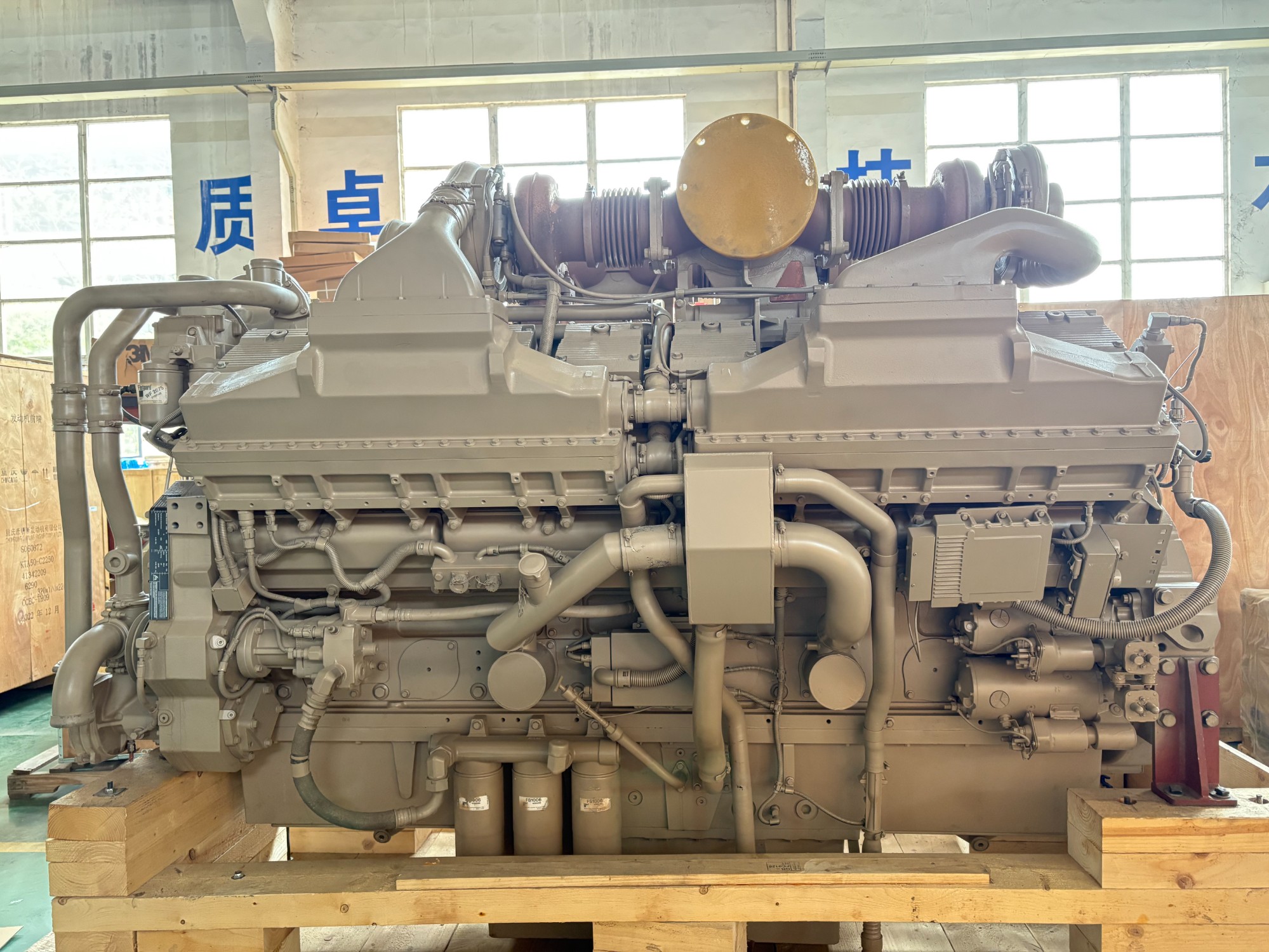

SDA16V160 / QSK60-C(2600)
| Model | QSK60-C(2600) |
| Rated Power | 1,398 KW @ 1800 RPM |
| Peak Torque | 8,364 N-m @ 1500 RPM |
| CPL | 3451 |
| Configuration | D593007CX03 |
| Fuel System | HPI |
| ECM Version | CM500 |
| Application | Komatsu PC4000 |
| Emission Certification | U.S. EPA Tier 1 |
| Aspiration | Turbocharged and Aftercooled |
| Displacement | 60L |
| No. of Cylinders | 16 |
| Compression Rate | 14.5:1 |
| Stroke | 190 mm |
| Fuel Consumption | 209 g/KW-hr @ 1800 RPM |
| Cooling System Type | 2 Pump 2 Loop |
| Dry Weight | 7990 KG |
| Wet Weight | 8475 KG |
| Dimension | 3116mm X 1740mm X 2240mm |
