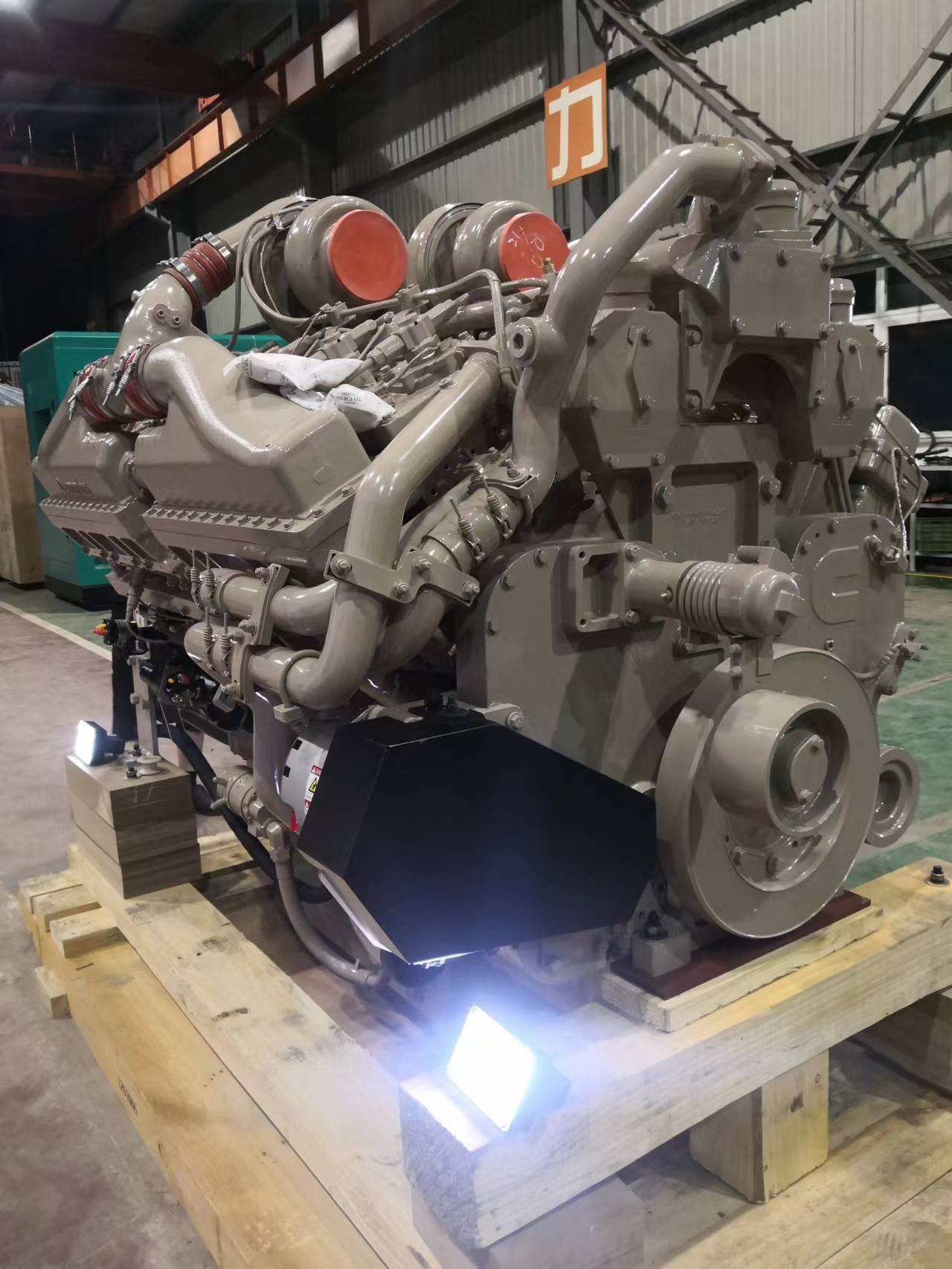

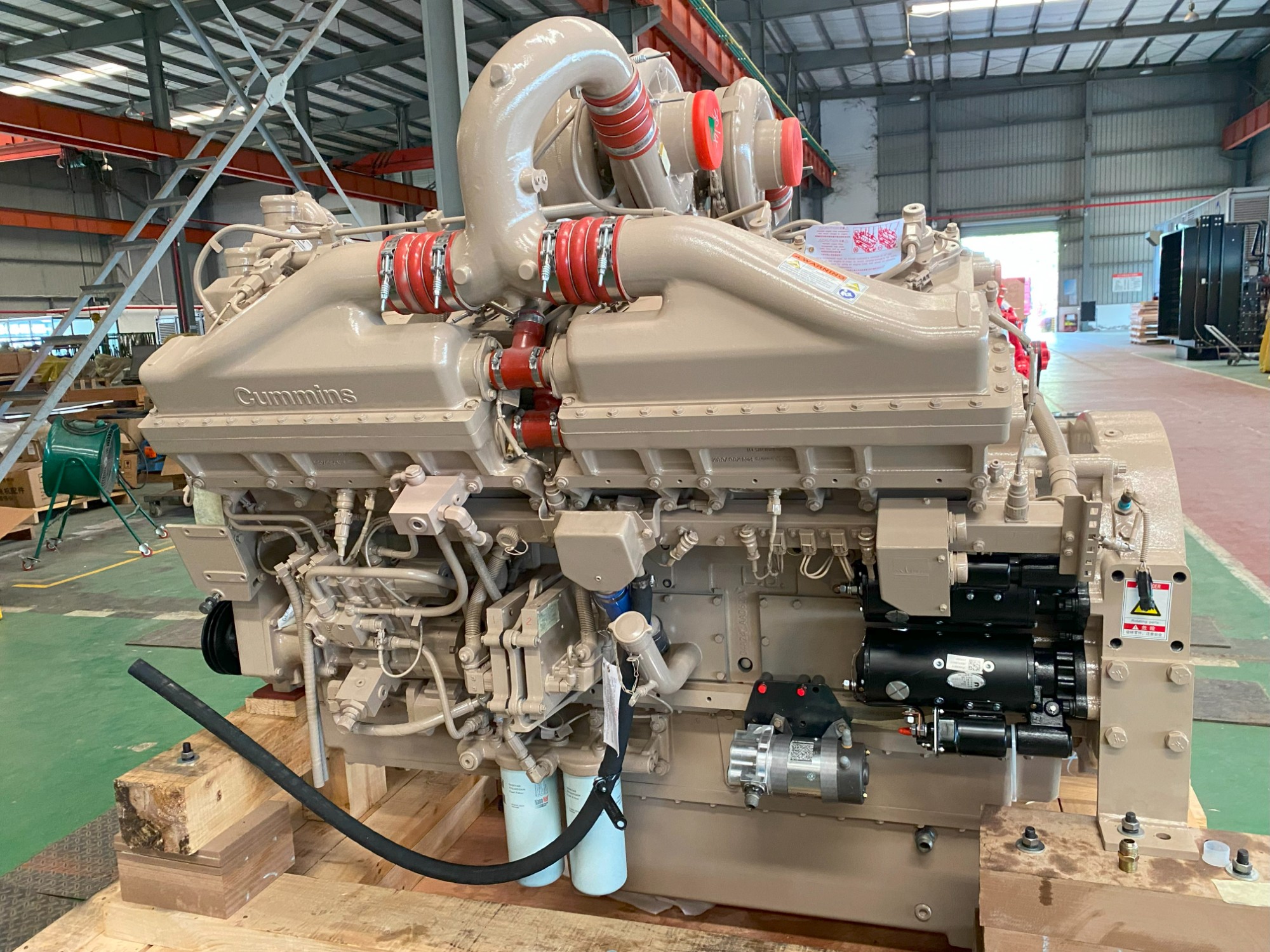

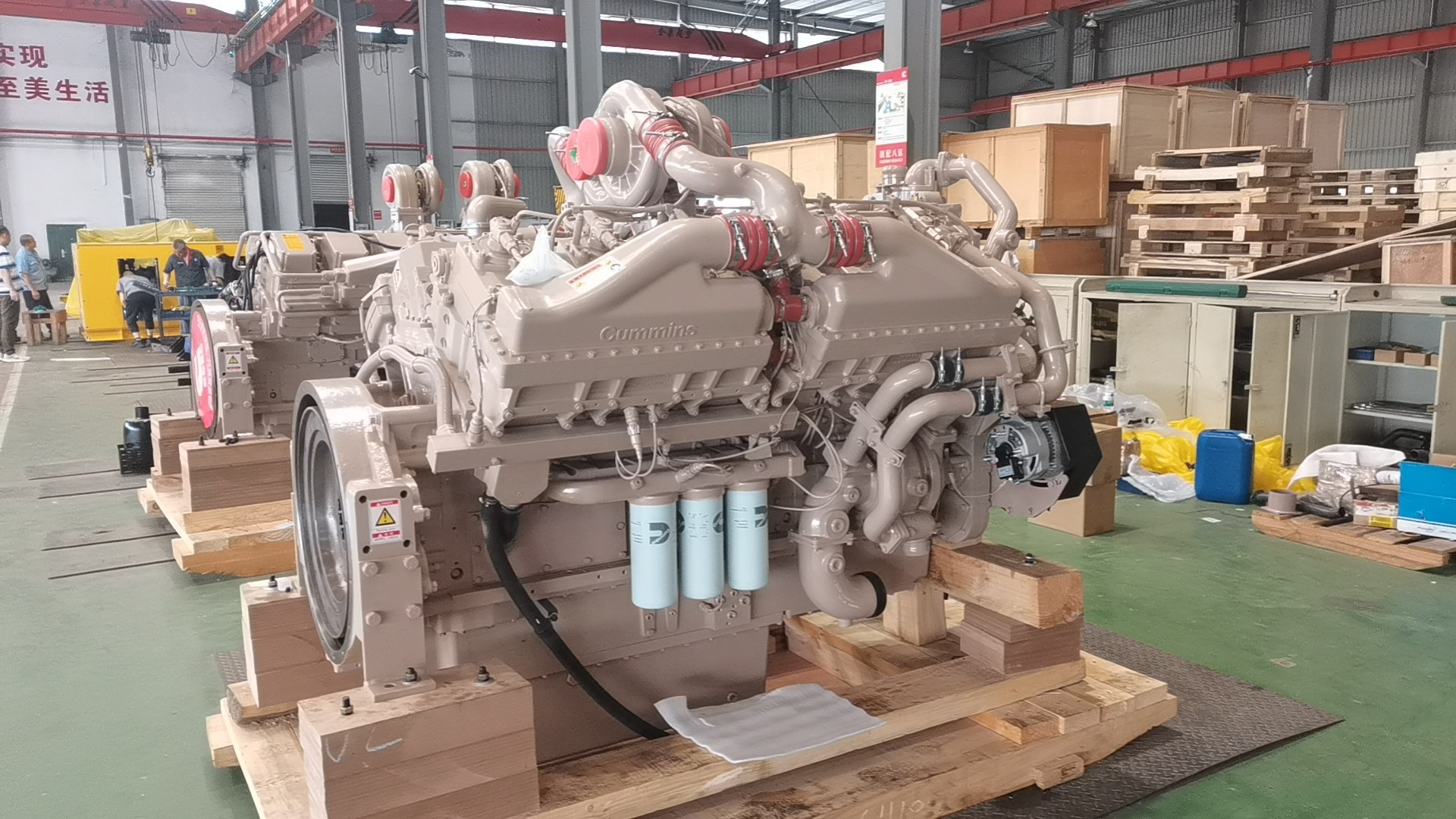

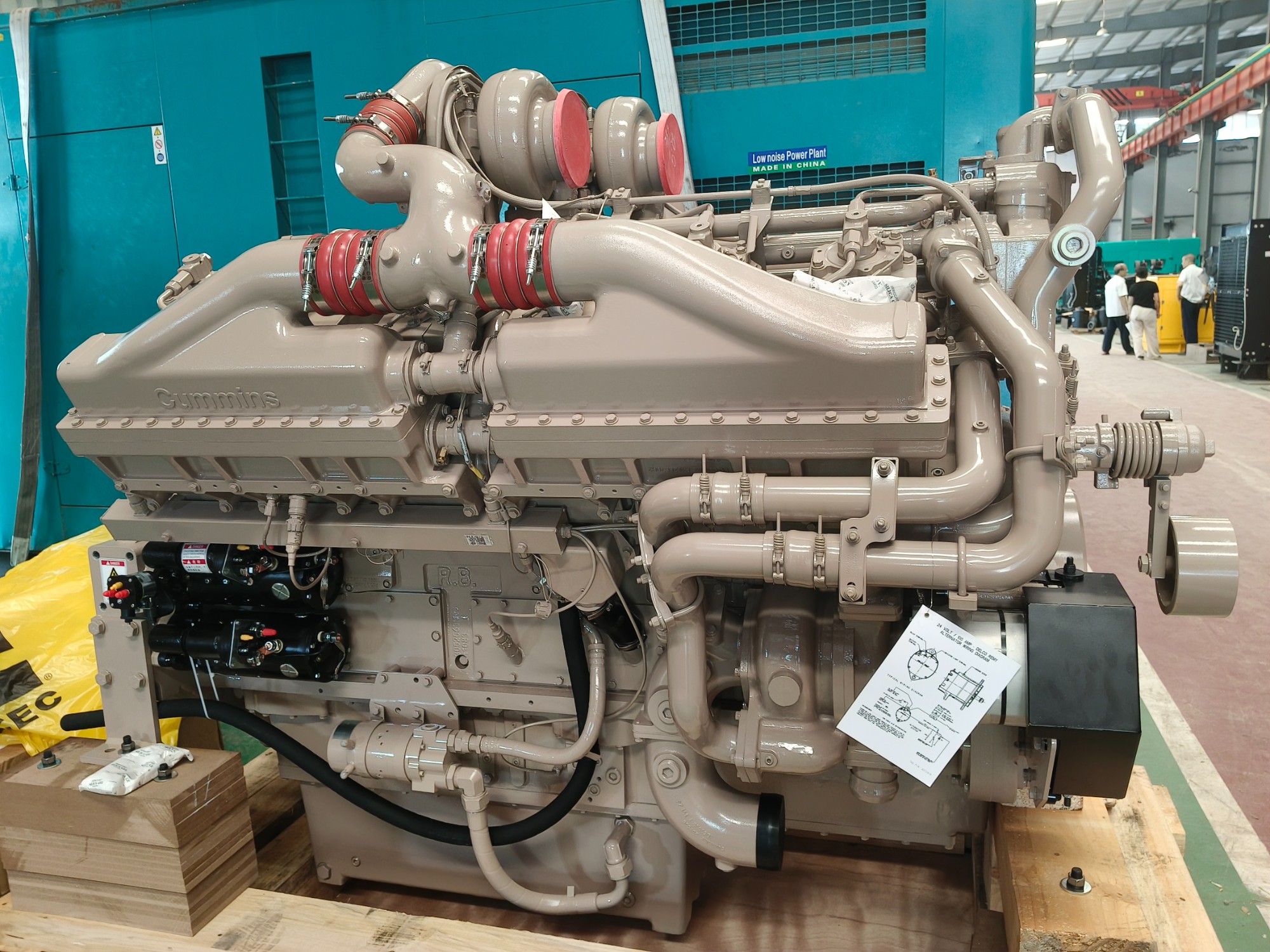

SDA12V159E-2
| Model | SDA12V159E-2 |
| Rated Power | 1260BHP@1800RPM |
| Peak Torque | 5496N-m@1400RPM |
| CPL | CPL3380 |
| Shop Order No. | SO64406 |
| Configuration | D233040CX03 |
| Fuel System | MCRS |
| ECM Version | CM2150 |
| Application | Komatsu PC3000 |
| Emission Certification | US. EPA Tier 2 |
| Aspiration | Turbocharged and Aftercooled |
| Displacement | 37.7L |
| No. of Cylinders | 12 |
| Compression Rate | 15.0:1 |
| Bore & Stroke | 159mm X 159 mm |
| Fuel Consumption | 207 g/KW-hr @ 1800 RPM |
| Cooling System Type | 2 Pump 2 Loop |
| Dry Weight | 4,510 kg |
| Wet Weight | 4,842 kg |
| Dimension | 2252mm X 1828mm X 1477mm |
| Supply Capacity | >5 Units per Month |
