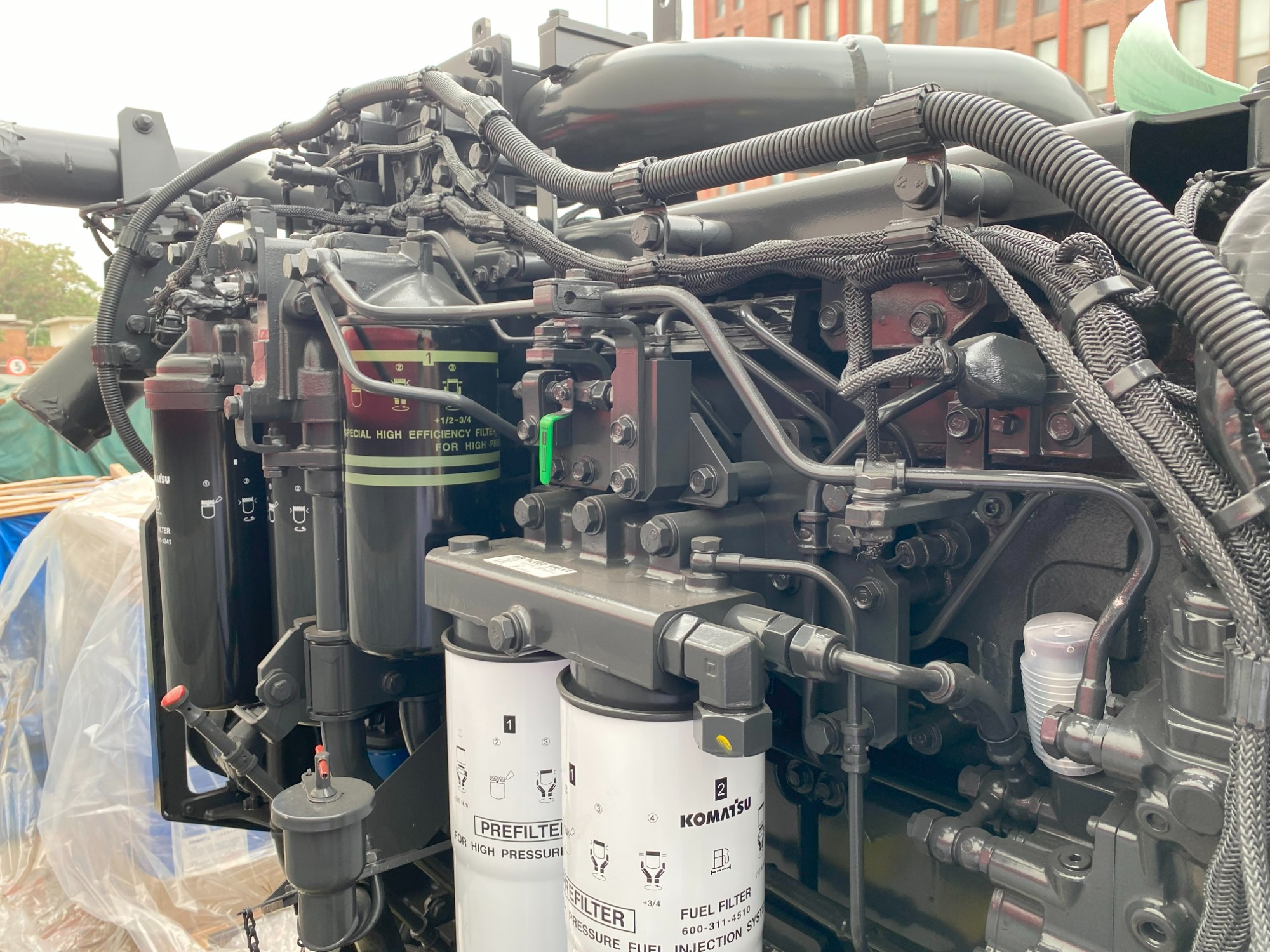

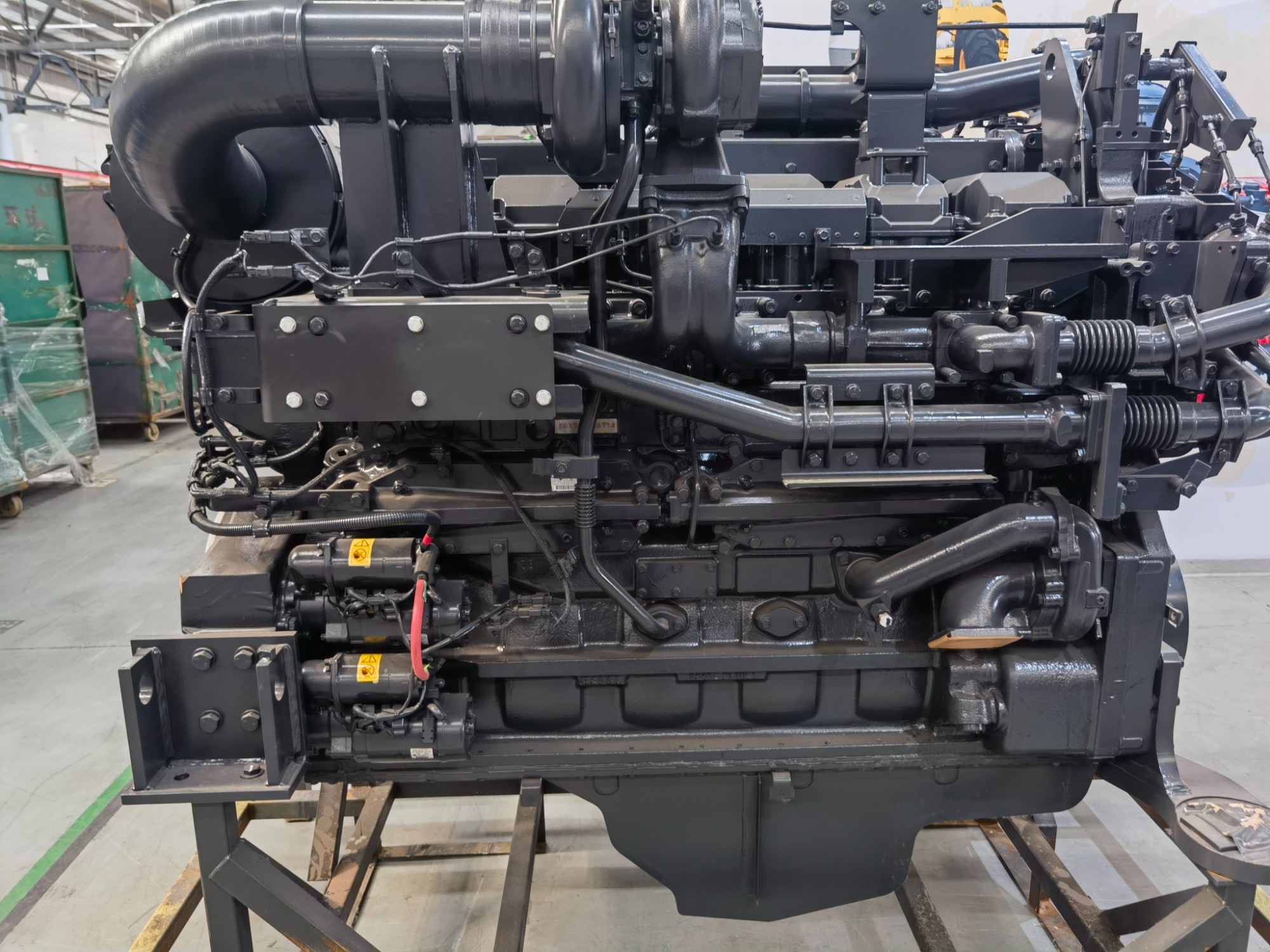

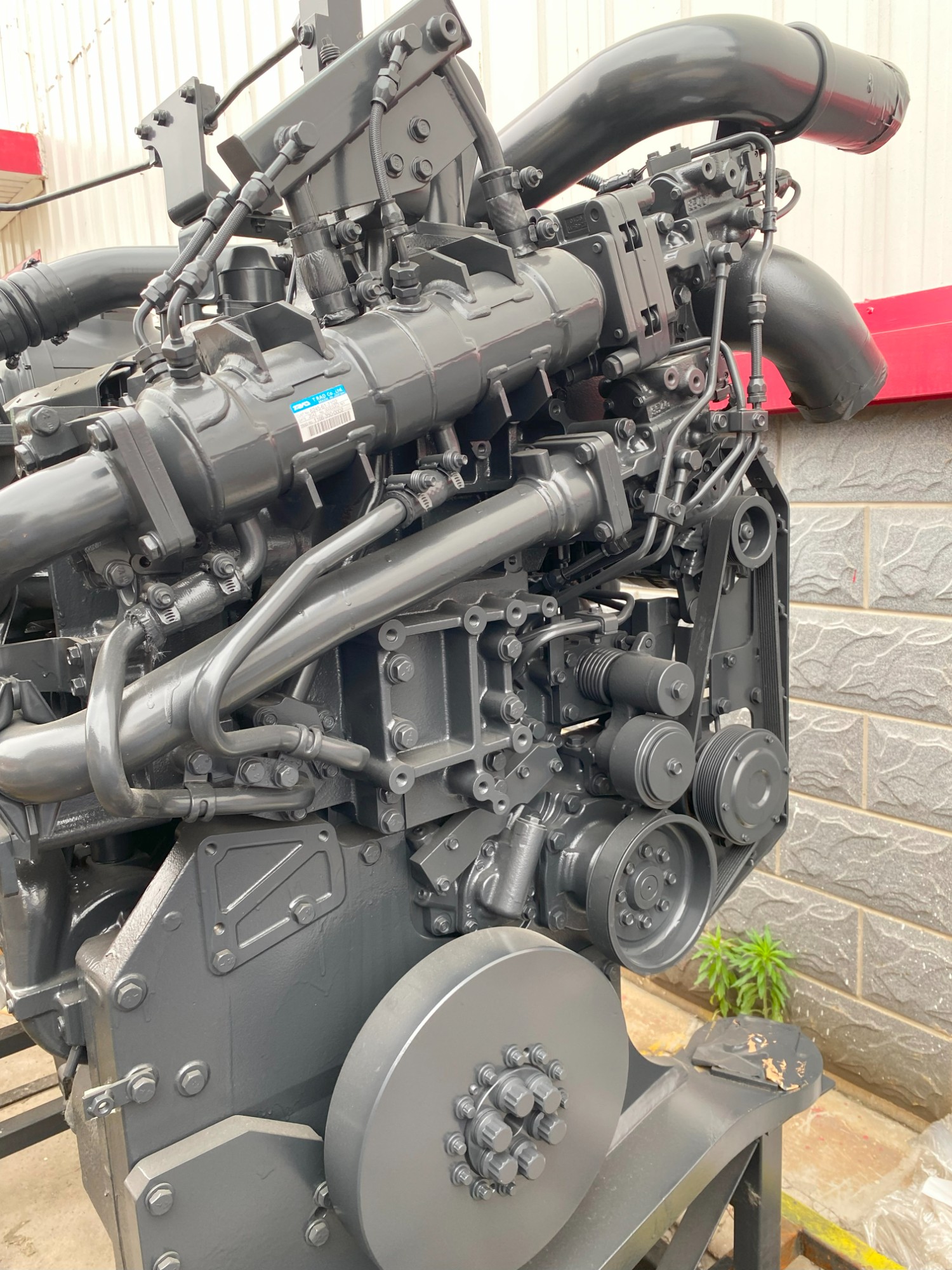

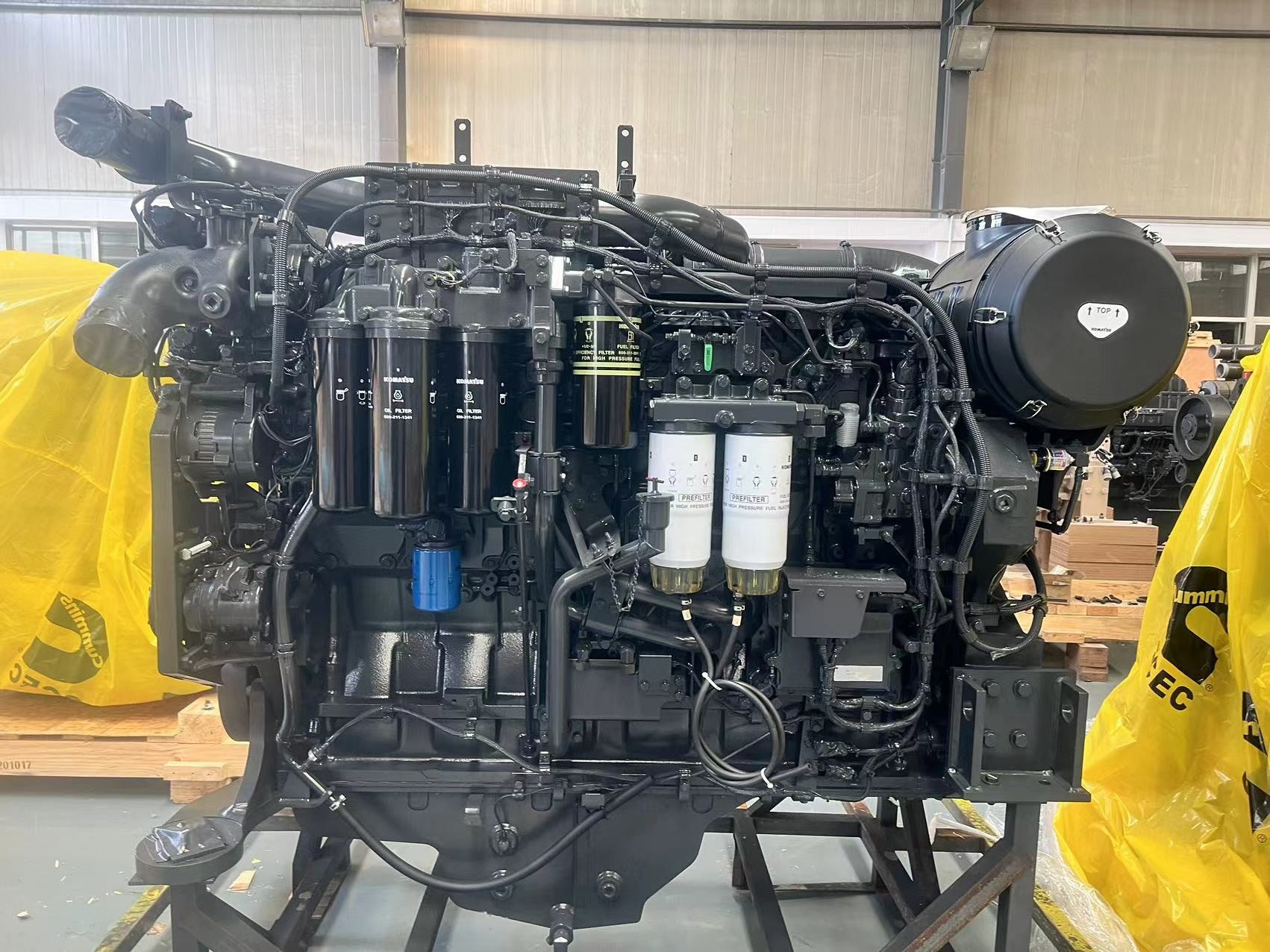

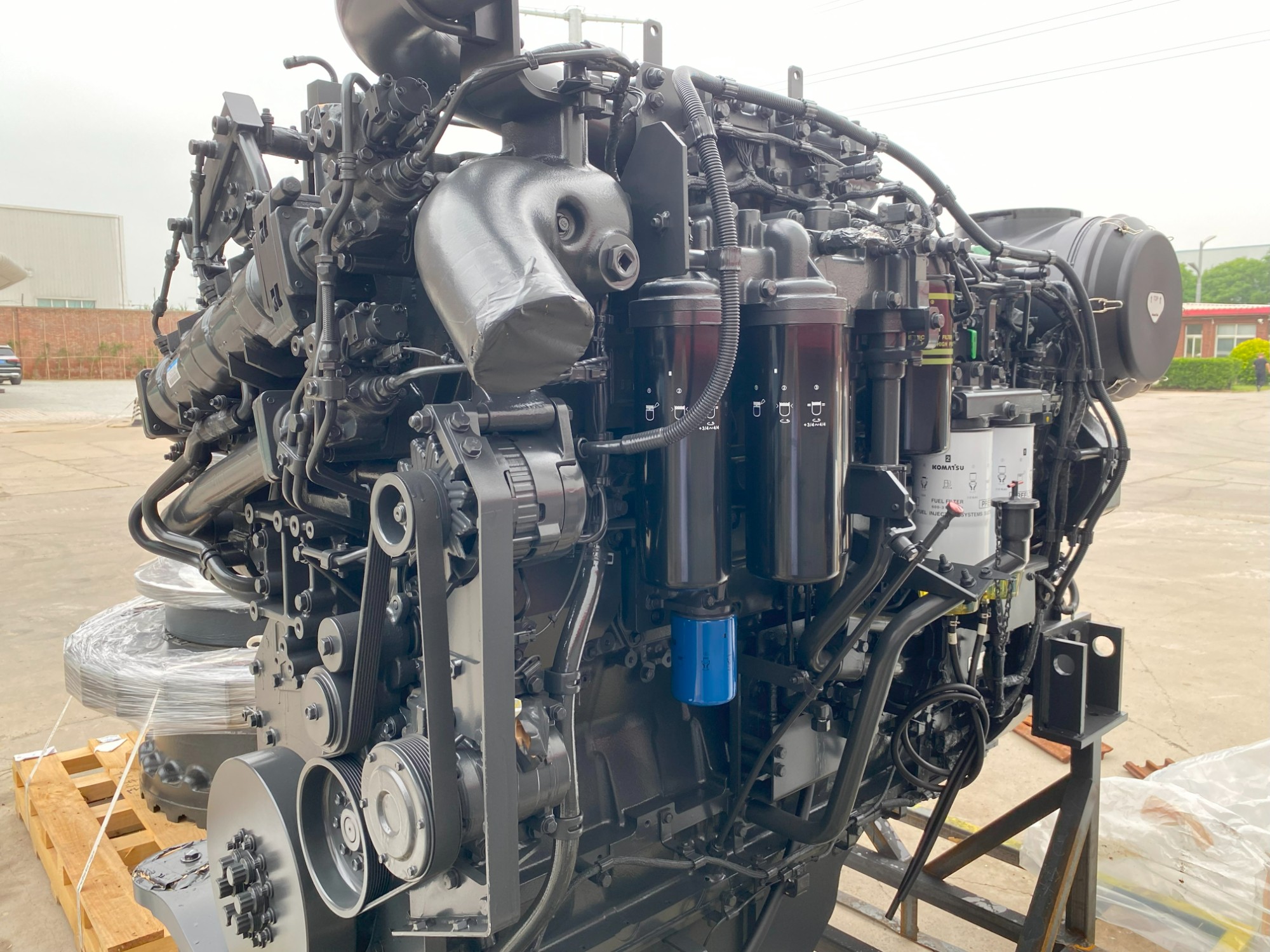

SAA6D170E-5
| Model | SAA6D170E-5 |
| Rated Power (kw) | 515 kw @ 1,800 rpm |
| Peak Torque | 3,205 Nm @ 1,300 rpm |
| CPL | - |
| Shop Order No. | 6245-C0-0530 |
| Configuration | - |
| Fuel System | Common Rail |
| ECM Version | - |
| Application | PC1250-8 |
| Emission Certification | EPA 2006 |
| Aftertreatment | EGR |
| Aspiration | Turbocharged and Aftercooled |
| Displacement | 23.15 L |
| No. of Cylinders | 6 |
| Compression Rate | - |
| Bore & Stroke | 170 mm X 170 mm |
| Fuel Consumption | 218 g/kwh |
| Cooling System Type | Air-Air aftercooler, EGR Cooler |
| Dry Weight | 3,140 kg |
| Wet Weight | 3,218 kg |
| Dimension (mm) | 1783 X 1176 X 1707 |
| Supply Capacity | 2 units/6 months |
